B563H-9-03B

Tandem 563H 9 Inch

Call: (619)873-4240

$41.44

Quantity




100 lbs. TANDEM self closing, full extension concealed drawer runner with zinc coated steel profiles. Comes with integrated BLUMOTION. Features concealed roller carriages with permanently lubricated synthetic rollers to create a smooth running action. Comes with Blumatic spring loaded self-closing action which automatically keeps the drawer front from touching the cabinet when closing. Locking devices enable easy drawer insertion and removal. Has a force guided right side and 1/16" tolerance compensating left side. Sold in pairs.

NOTE: For 9 Inch Slide, Cabinet Depth Must be minimum 10 Inches.

  • Height: Drawer must be at least 3/4" less than the total cabinet opening height.
  • Width: For 5/8" thick drawer material, deduct a total of 3/8" from the cabinet total opening width.
  • Width: For 1/2" thick drawer material, deduct a total of 5/8" from the cabinet total opening width.
  • Drawer Depth: 9 Inches

  • Mounting Screws Sold Separately
  • Front Locking Devices & Rear Mounting Bracket Sold Separately

Rear Mounting Socke...

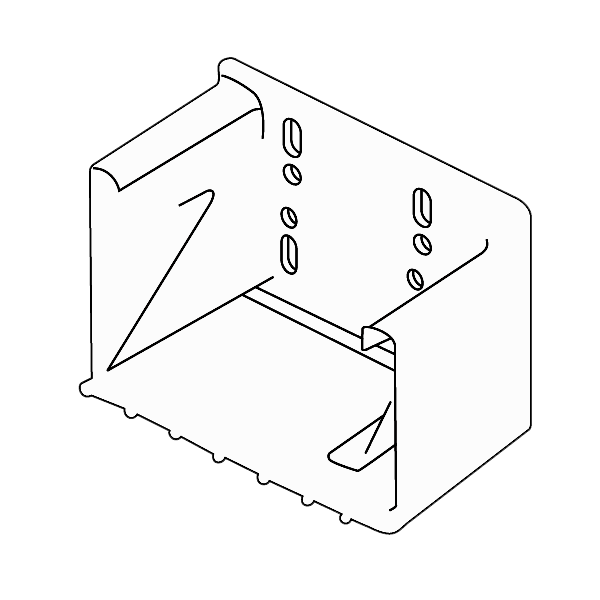

Rear Mounting Socket for 9

$4.51 QTY:

[B295-370-21]

Rear Mounting Socke...

Rear Mounting Socket for 9

$5.31 QTY:

[B295-370-22]

Universal Bracket K...

Universal Bracket Kit

$9.56 QTY:

[B295-4000]

Countersunk Screw #...

Countersunk Screw #6 X 5/8 Inch

$2.01 QTY:

[WUMS6X58]

Side Spacer

Side Spacer

$1.39 QTY:

[B59-357]

Systems Screws 6.3 ...

Systems Screws 6.3 X 13mm

$4.20 QTY:

[WUES6.3X13]

Locking Devices Sid...

Locking Devices Side Adjustment 563/569

$5.36 QTY:

[BT51-1901.LR]

Tandem 563H 12 Inch

Tandem 563H 12 Inch

$33.27 QTY:

[B563H-12-03B]

Tandem 563H 15 Inch

Tandem 563H 15 Inch

$33.34 QTY:

[B563H-15-03B]

Tandem 563H 18 Inch

Tandem 563H 18 Inch

$34.36 QTY:

[B563H-18-03B]

Tandem 563H 21 Inch

Tandem 563H 21 Inch

$35.69 QTY:

[B563H-21-03B]

Locking Devices Sid...

Locking Devices Side Adjustment - Depth Adjustable 563/569

$11.00 QTY:

[BT51-1901.PSLR]

Locking Devices Sta...

Locking Devices Standard 563/569

$3.10 QTY:

[BT51-1801-LR]

Locking Devices Sid...

Locking Devices Side Adjustment 563/569

$5.36 QTY:

[BT51-1901.LR]

Manufacturer
Blum
Manufacturer Part #
563H229B
Material
Steel
Mounting Type
Screw On
Notes
For 5/8" maximum drawer thickness
Full extension
Locking devices enable easy drawer insertion & removal
Integrated Blumotion
Overall Length
10-5/32"
Product Finish
Zinc Coated
Product Type
Drawer Slide: Undermount Soft-Close
Sold
Pair
Weight Capacity
100 lbs
