CLIP top 170 Hinges

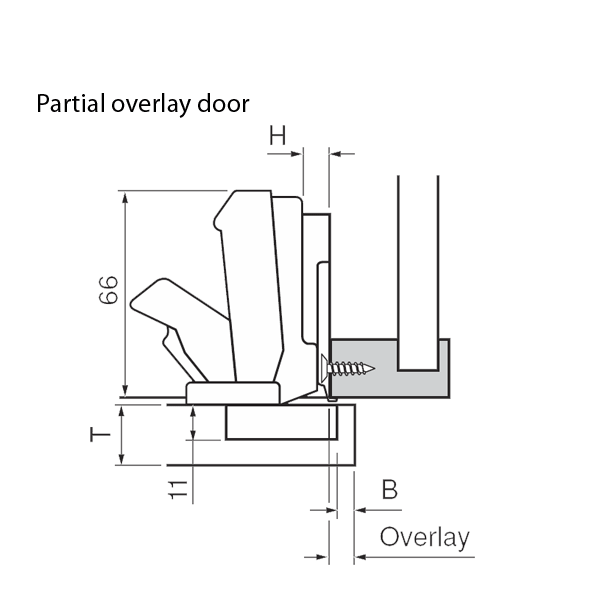

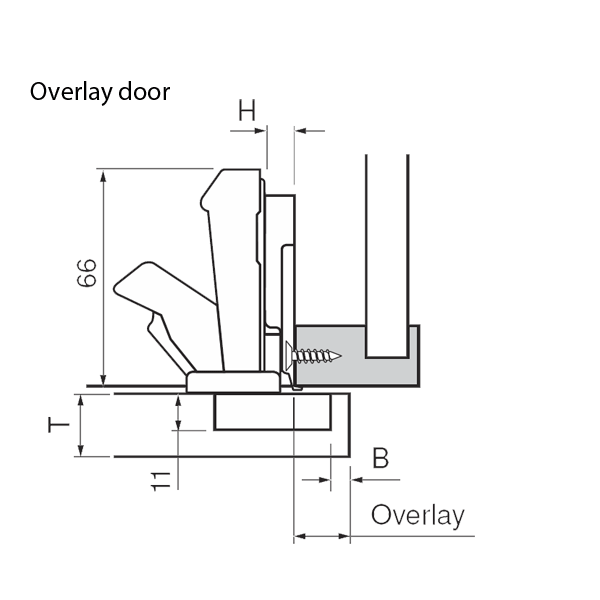

Frame Cabinet Application
![Frame Cabinet Application](images/b170.jpg)
170° opening angle hinge.
Includes "spiral-tech" depth
adjustment - one and three
quarters revolutions of the
screw creates 3/16" (5mm) of
adjustment without loosening
and retightening a fixing
screw. Small flange around
perimeter of the cup gives
added strength and the
bottom is closed so you don't
see the the door core
material. INSERTA model
provides tool-free door to
cabinet assembly and
removal.
Nickel plated finish
Nickel plated finish

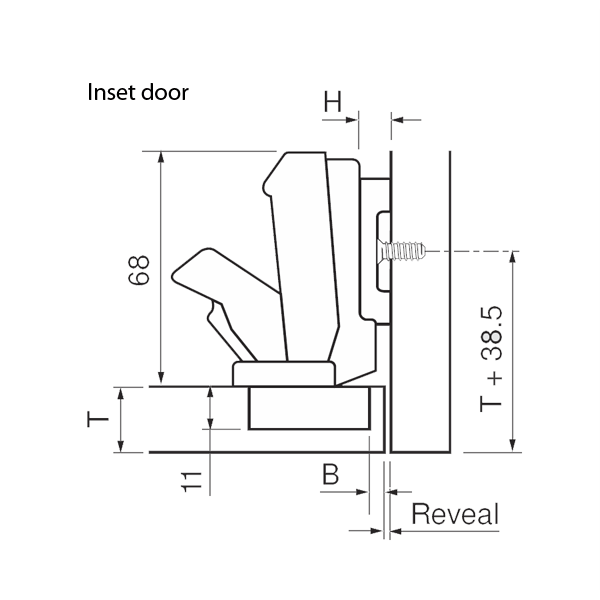

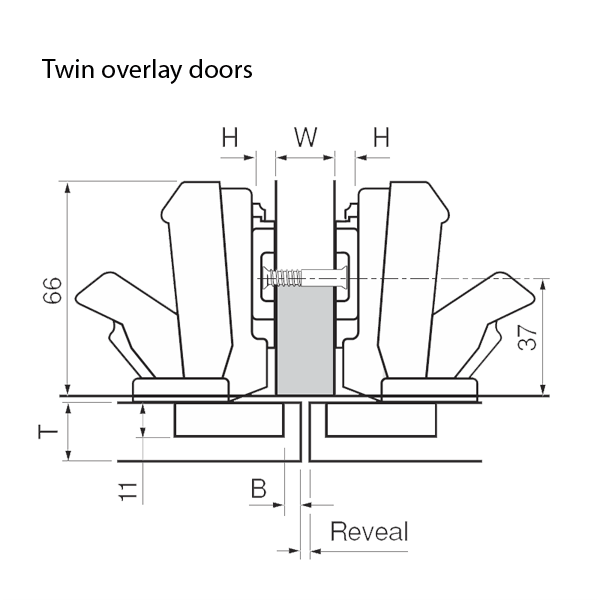

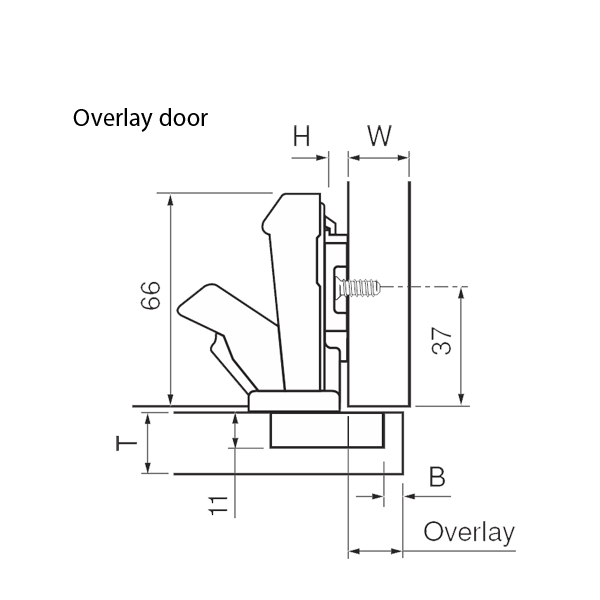

Panel Cabinet Application
![Panel Cabinet Application](images/b170.jpg)
170° opening angle hinge.
Includes "spiral-tech" depth
adjustment - one and three
quarters revolutions of the
screw creates 3/16" (5mm) of
adjustment without loosening
and retightening a fixing
screw. Small flange around
perimeter of the cup gives
added strength and the
bottom is closed so you don't
see the the door core
material. INSERTA model
provides tool-free door to
cabinet assembly and
removal.
Nickel plated finish.
Nickel plated finish.
