CLIP Mounting Plates

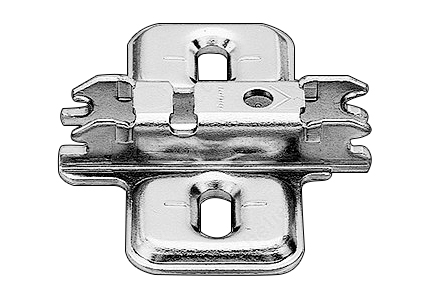

One Pice Wing Mounting Plate for Wood Screws
![One Pice Wing Mounting Plate for Wood Screws](images/One Piece Wing Mounting Plate.jpg)
- 0mm & 3mm Clip Plate Stamp Steel for Wood Screws
- Wood Screws #6 X 5/8"
- Two screw height adjustment with 6mm range
- Screws Sold Separately

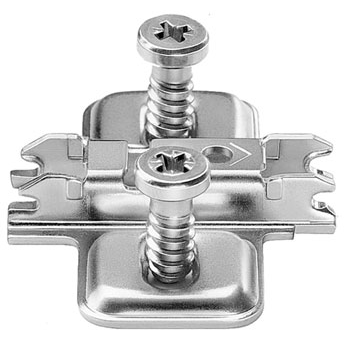

One Piece Mounting Plate with System Screws
![One Piece Mounting Plate with System Screws](images/Blum_173l8100_Mounting_Plate.gif)
- 0mm & 3mm Clip Plate Stamp Steel System Screw
- Attach with premounted system screws - 5mm
- Two screw height adjustment with 6mm range
- Screws Included

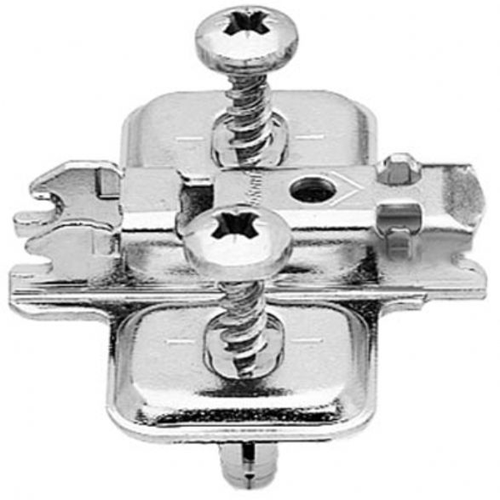

EXPANDO Mounting Plates
![EXPANDO Mounting Plates](images/174E6100.01.gif)
- 0mm & 3mm Clip Plate Cam Adj Expando Dowel
- Vertical Cam Adjustment Plates
- Attach with premounted Expando Dowels
- 7.5mm long dowel
- Vertical cam adjustment range of +/- 2mm

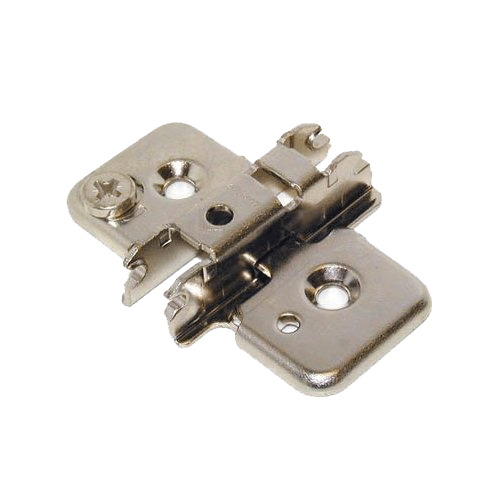

Cam Mounting Plates
![Cam Mounting Plates](images/Blum_173h7100_Mounting_Plate.gif)
- 0mm & 3mm Mounting Plate
- Vertical Cam Adjustment Plates
- Attach with #6 X 5/8" Wood Screws or 5mm System Screws
- Vertical cam adjustment range of +/- 2mm
- Screws Sold Separatly

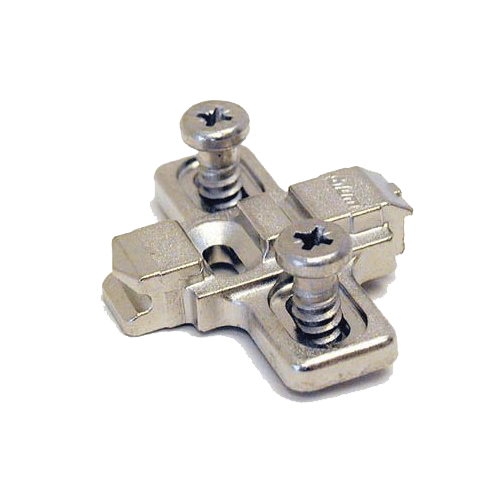

Die Cast One Piece Mounting Plate
![Die Cast One Piece Mounting Plate](images/Blum_175l8100_Mounting_Plate.gif)
- 0mm, 3mm & 9mm Clip Mtg Plate System Screw
- Attach with premounted system screws - 5mm
- Screws Included
- Two screw height adjustment with 6mm range

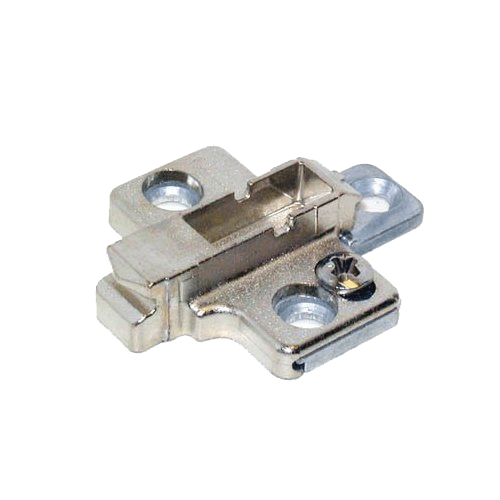

Die Cast Two Piece Mounting Plate (Wood Screws)
![Die Cast Two Piece Mounting Plate (Wood Screws)](images/Blum_175H7100_Mounting_Plate.gif)
- 0mm, 3mm & 9mm Clip Mtg Plate
- Attach with #6 X 5/8" Wood Screws
- Screws Sold Separatly
- One screw height adjustment with 4mm range

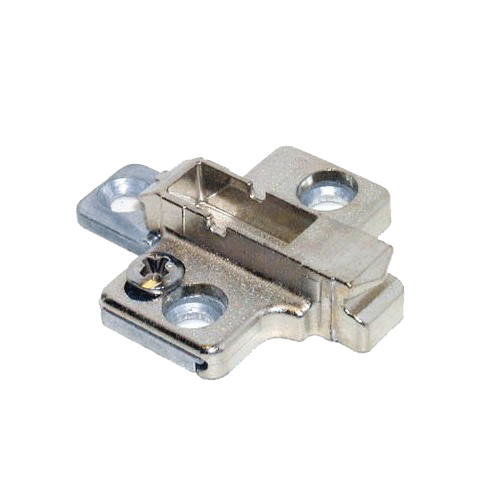

Die Cast Two Piece Mounting Plate (5mm System Screws)
![Die Cast Two Piece Mounting Plate (5mm System Screws)](images/Blum_175H9100_Mounting_Plate.gif)
- 0, 3, 6, 9, & 18mm Clip Mtg Plate
- Attach with 5mm System Screws
- Screws Sold Separatly
- One screw height adjustment with 4mm range

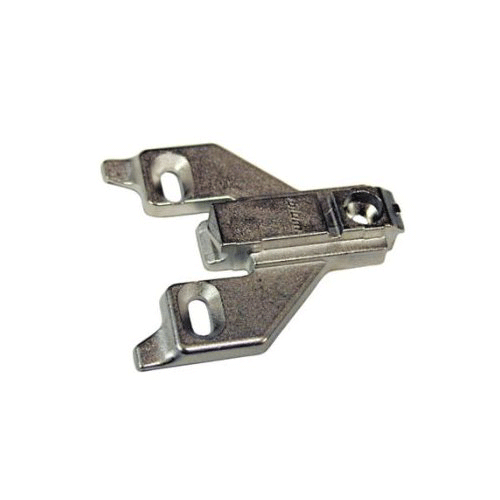

Face Frame Adapter Plate (Off-Center Mount)
![Face Frame Adapter Plate (Off-Center Mount)](images/Blum_175L6600.22_Mounting_Plate.gif)

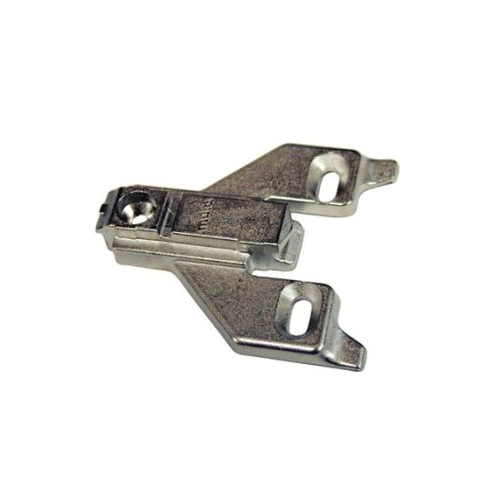

Face Frame Adapter Plate (Center Mount)
![Face Frame Adapter Plate (Center Mount)](images/Blum_175l6030.21_Mounting_Plate.gif)

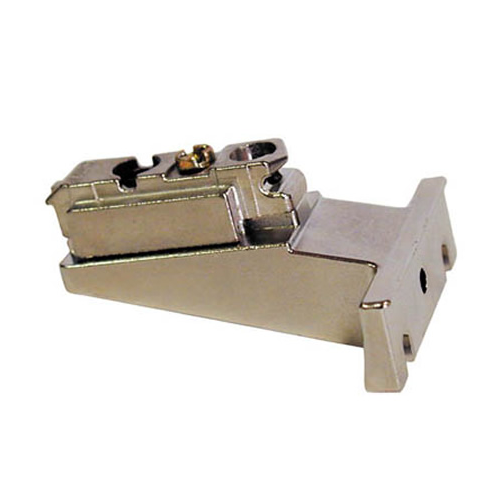

INSET Face Frame Cam Adapter Plate
![INSET Face Frame Cam Adapter Plate](images/175h5030.21.png)
- 4.5mm Height CLIP Mounting Plate w/Cam Adjustment for Face Frame Applications
- Cam Height Adjustment of +/- 2mm using screwdriver
- Screws Not Included (use #8 x 3/4" wood screw)
- Zinc die-cast, Nickel Plated
- Use with half-cranked hinges only

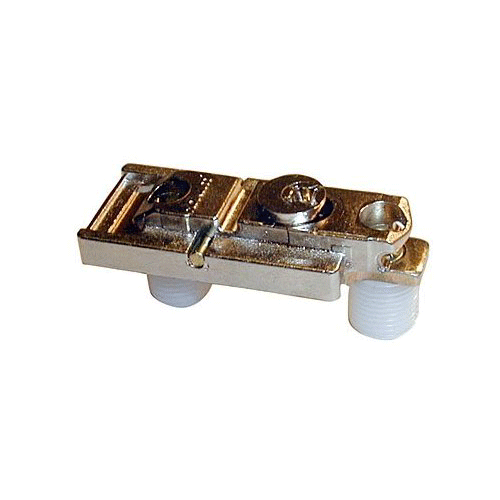

Cam In-Line Mounting Plate
![Cam In-Line Mounting Plate](images/Blum_177H5100_Mounting_Plate.gif)
- 0mm Clip Mtg Plate Knock In W/Dowel
- Installed with insertion ram only
- Vertical cam adjustment with 4mm range
- Dowel included

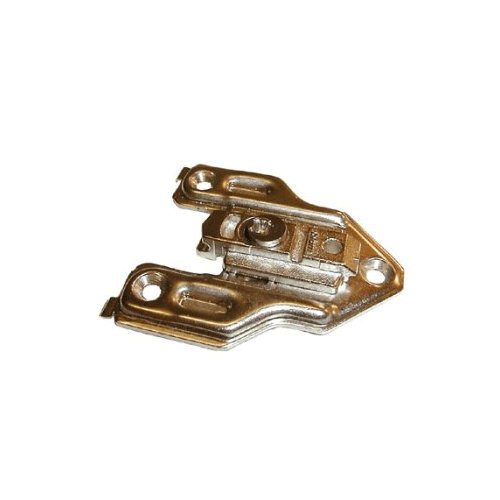

Cam Face Frame Adapter Plate (Center Mount)
![Cam Face Frame Adapter Plate (Center Mount)](images/Blum_175H6000_Mounting_Plate.gif)
- Attach with #6 x 5/8" Wood Sold Separatly
- Overlay face frame adapter plate
- Screws Included
- Cam height adjustment range of +/- 2mm

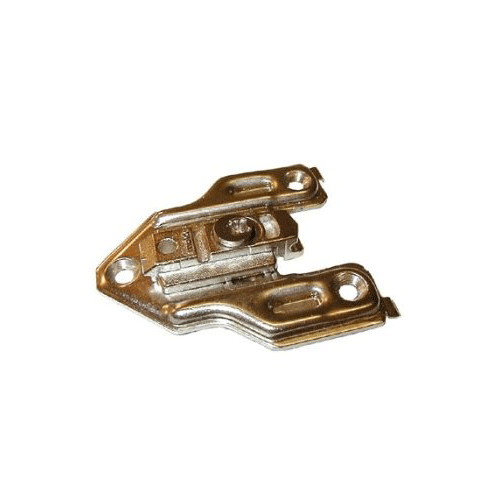

Cam Face Frame Adapter Plate (Off-Center Mount)
![Cam Face Frame Adapter Plate (Off-Center Mount)](images/Blum_175H6600_Mounting_Plate.gif)
- Attach with #6 x 5/8" Wood Sold Separatly
- Overlay face frame adapter plate
- Screws Included
- Cam height adjustment range of +/- 2mm
